Fully charge your new Exo Iris device before scanning for the first time.
Warning!
• Do not attempt to replace the battery in the device. Only charge the battery using the chargers specified in this user manual.
• If you see any damage to the cables, remove the device from service, and contact Exo Customer Support.
• If the device appears to malfunction, stop using it immediately, and contact Exo Customer Support.
TO CHARGE THE DEVICE FROM THE WALL
1. Attach the charging end of the Exo Duo Cable to the USB-C Power plug.
2. Plug the USB-C Power plug into an electrical outlet, ensuring that the electrical outlet is easily accessible and not blocked by other objects or equipment.
3. When done charging the device, disconnect the USB-C Power plug from the electrical outlet.
TO WIRELESSLY CHARGE THE DEVICE
1. Connect the USB-C cable to the wireless charger.
2. Plug the opposite end of the wireless charger into the USB-C Power plug.
3. Plug the USB-C Power plug into an electrical outlet.
4. Detach the Exo Duo Cable from the Exo Iris device.
5. Place the flat side of Exo Iris device on the wireless charger. LED lights on the Exo Iris device indicate the charging status.

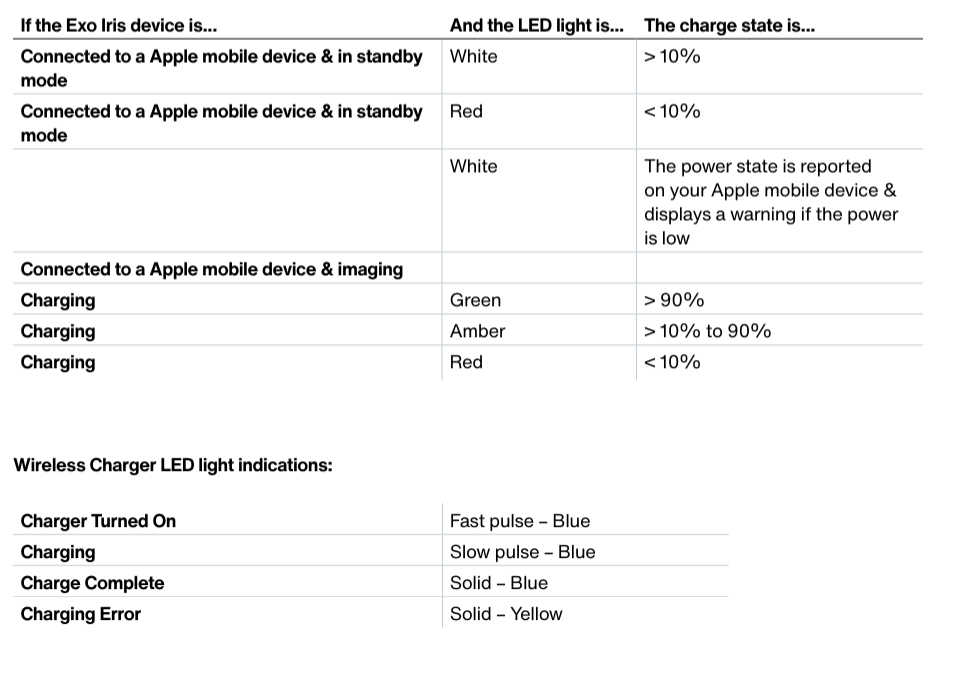

LED lights on the Exo Iris device indicate the charging status
