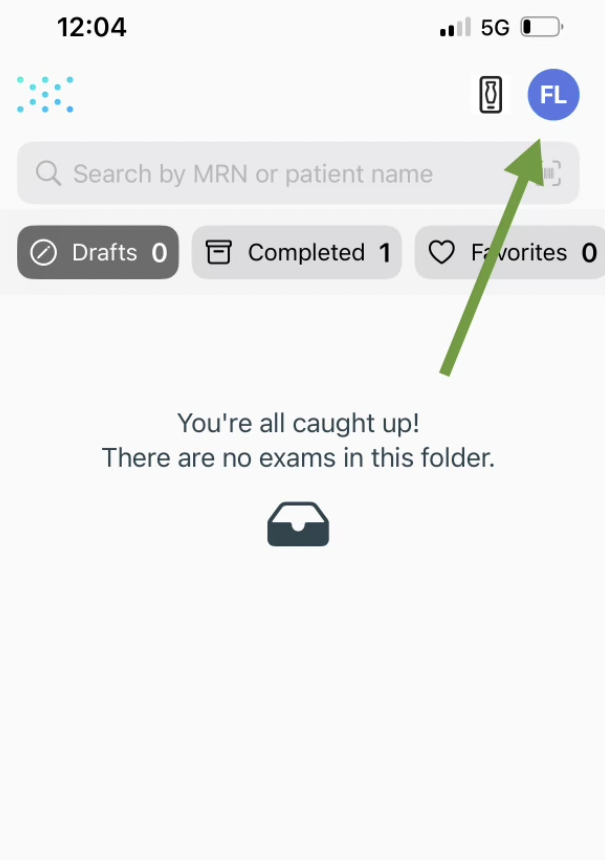

1. Launch the "Exo Iris" app on your mobile device. After logging in, proceed to the top right corner and click on your User Icon (either your initials or picture).

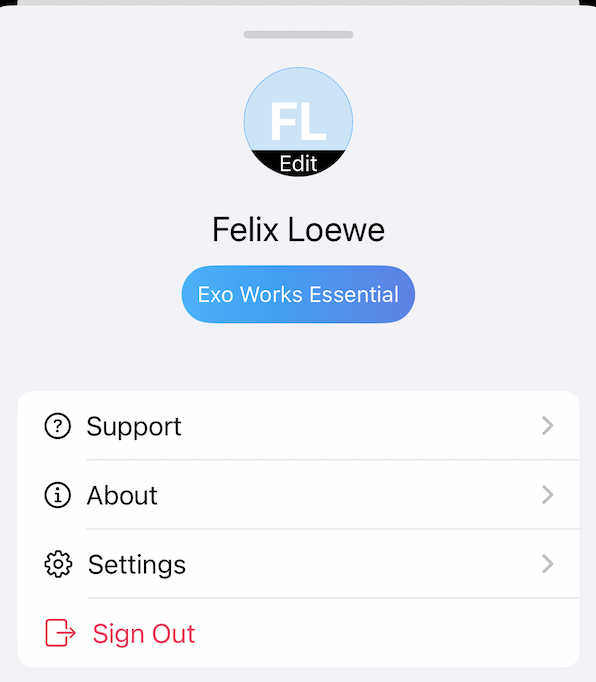

2. From the dropdown menu, select "Settings"

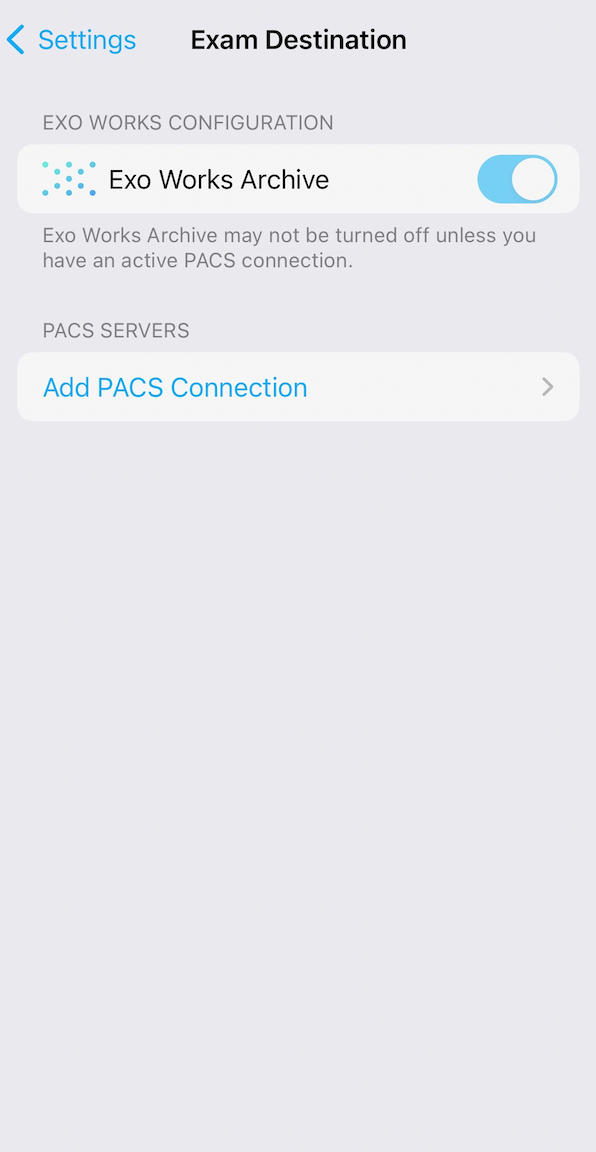

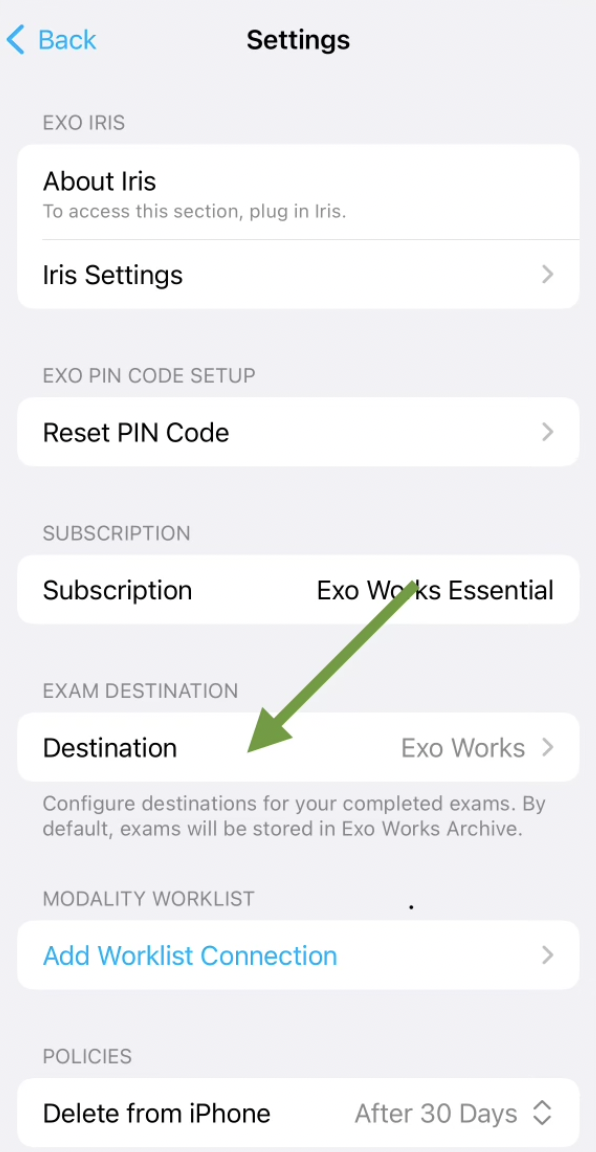

3. In the Settings menu, choose "Exam Destination." Here, locate the "Add PACS Connection" button.

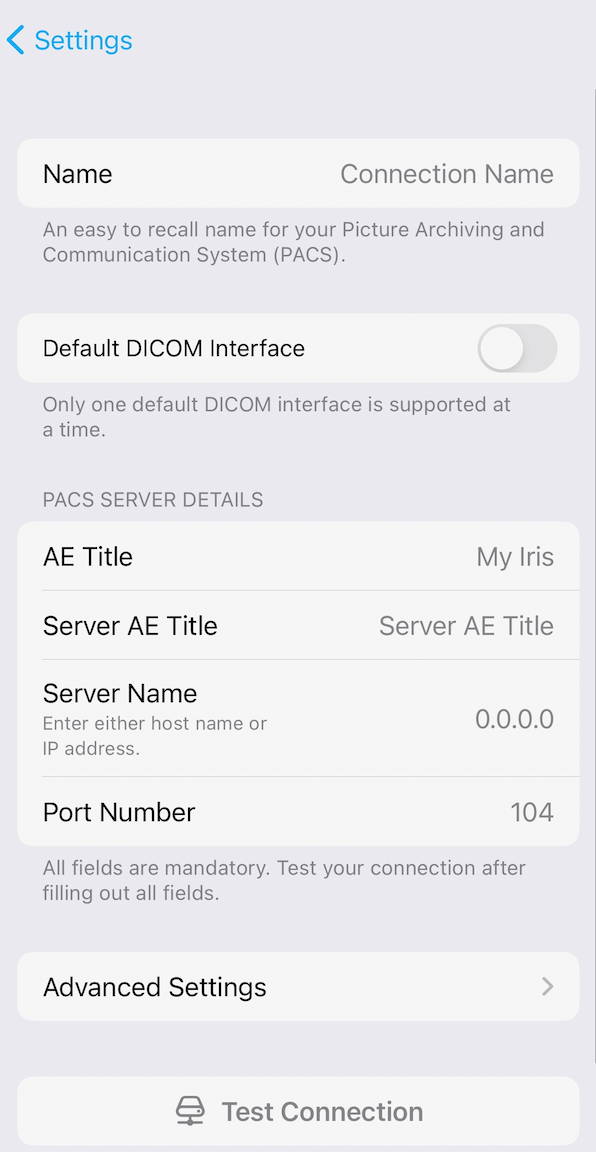

4. After clicking "Add PACS Connection," you will be prompted to fill in the following mandatory fields:
-
- Connection Name (create a descriptive name for your connection)
- AE Title
- Server AE Title
- Server Name/IP
- Port Number
Input the following details into the respective fields:
-
-
- AE Title: QIEPROXY
- Server Name/IP: 10.5.10.81
- PORT: 20401
-
Disclaimer: The AE Title, Server Name/IP, and Port Number could vary depending on your specific setup/configuration.
5. Once all required fields are filled, proceed to the bottom of the screen and select the "Test Connection" button.
6. The "Test Connection" feature will verify the accuracy of the entered information and confirm if the connection is configured correctly.
- These steps will successfully link Exo Iris to your existing Exo Works Enterprise solution.
